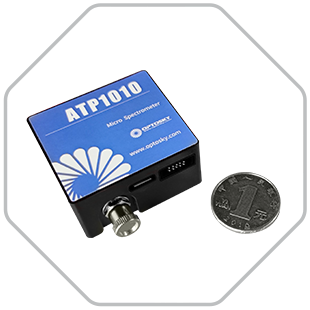

GWU presents: ATP 1010
The ATP 1010 Spectrometer is combining the smallest footprint and most advanced technology in a cost-efficient package. Available from the UV to the NIR wavelength range, the ATP 1010 can be configured with various slits, gratings or filters. Because of the extremely compact size and the efficient performance, this device is perfectly suitable for in-field quality monitoring or OEM applications.
The ATP 1010 spectrometers are employing are 512-pixel CMOS detector in a Czerny-Turner setup, capable from 180 nm to 1100 nm. It can be used with free-space input or fiber-coupled with a SMA905 connector. The very compact size and the electric supply via USB ensure very convenient usability even in in-field or outdoor applications.
Features and Benefits:
- 512-pixel, UV enhanced detector
- Spectral Range 180 – 1100 nm, 5 pre-defined standard ranges or customized
- Various slit sizes available from 5 – 200 µm
- Resolution 0.2 – 5 nm (depending on spectral range and slit size)
- Fiber-coupled or free-space input
- USB or UART data output
- Mini Spectrometer – 45 mm x 40 mm x 24 mm [Length x Width x Height]
- Including software and SDK
