GESTIONE SILO: Customized, Precision Opto-Mechanical Components – Since 1976

GESTIONE SILO is an Italian company specialized in custom precision optics and optomechanical assembly for Space, Defense, Biomedical, Research and Industrial applications. The company was founded in 1950 and after many technical improvements, today is a leader in the production of custom optics. The headquarter is located in Scandicci near Florence, with 1200 square meters and about 35 employees.

Since its foundation GESTIONE SILO has been growing in the optomechanical and optical fields in Italy, finding approval and a reference market. The Company’s mission is to create a customer-oriented system that guarantees solutions tailored to the respective customer requirements of different sectors. To achieve such results, GESTIONE SILO aims at improving conventional technology and developing innovative technology, matching know-how, and research.

Design and assembly of fully custom optomechanical systems: lenses, eyepieces, relay lenses, collimators

Starting from an idea or specific requirements, GESTIONE SILO is capable of supporting the customer in designing and integrating optomechanical systems and complex instruments, such as telescopes, microscopes, spectrometers, and earth vision systems.

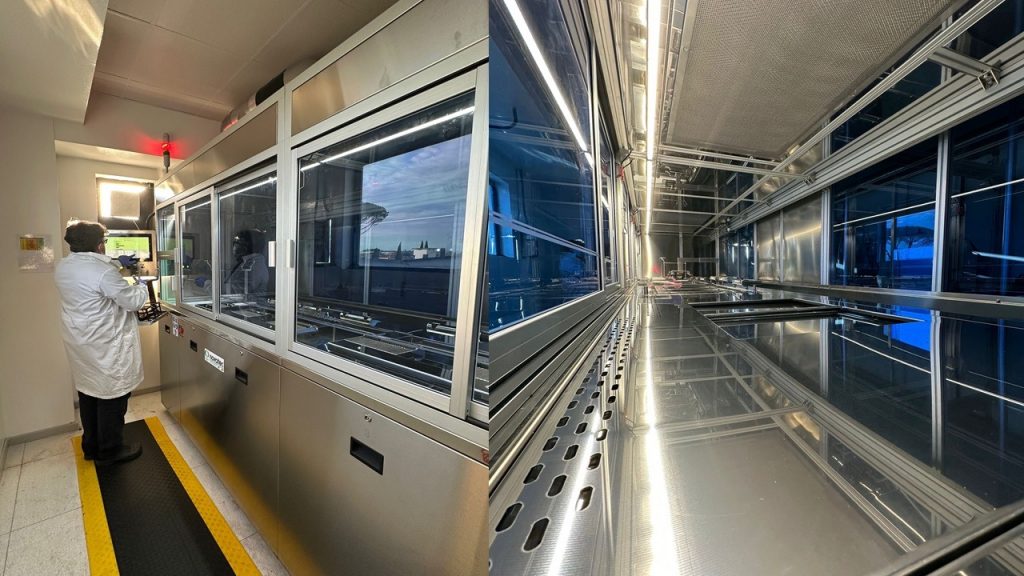

The Company is equipped with a Clean Room, for the integration of instruments in a controlled environment according to the ISO5 class, as well as a large climatic chamber to test in the temperatures range of (-40°C, +180°C), thermal shocks, and conditions of high humidity.

Products and capabilities

GESTIONE SILO manufactures custom components, such as lenses, prisms, windows, mirrors, filters, and integrated optomechanical systems with substrates and materials: Schott, Ohara, CDGM, Corning, Hoya materials, ZnSe, fused silica, Germanium, Silicon, ZnS, CaF2, MgF2.

  • Shapes: Spherical lenses, prisms, cylinder lenses, plates, mirrors, free form, metallic and glass components
  • Dimensions: 0-300 mm for lenses – 0-500 mm for mirrors
  • Parallelism: 5 arc sec
  • Centering: 10”
  • Spectral range: 300 nm – 25000 nm
  • Surface flatness: λ/20
  • Surface quality: S&D 10&5 nm, roughness 0.5 nm
  • Quantity: 1 – Unlimited

Coating

GESTIONE SILO has many years of experience in the development and production of coating in a wide range for UV, Visible, NIR, and IR with performance of absolute excellence. We can provide coatings for military, medical, aerospace, laser, and industrial applications.

There is an internal laboratory, equipped with 2 coating machines to create more types of coating: Antireflection, Metallic, Dichroic, ITO, dielectric coatings, filters, and beam splitters.

  • Shapes: Spherical, Aspherical, plane, convex, concave, parabolic, hyperbolic, free form.
  • Spectral range: UV-IR coating 300 nm – 5000 nm
  • Reflection: 0,15%
  • Transmission: 99,5%

Metrology and testing laboratory

GESTIONE SILO uses the metrology and testing laboratory also for all measurement tasks of high precision and resolution requirements. Our laboratory is provided with Trioptics centering machine OptiCentric 3D 300 Dual, Perkin Elmer LAMBDA 950 UV/Vis/NIR (@300 – 3000 nm) and Shimatsu IR Affinity (@2,5-25 um) spectrophotometers to test the optical components for the entire spectral band (300 – 25000 nm), a Zygo interferometer with a large optical bench, a rugosimeter and more instruments to test all the optical components to guarantee the strict tolerances of precision optics.
